Cheap Retaining Wall Blocks: Costs and Where They Fail

Block type sets the price, but height sets the engineering. Costs per square foot, the heights that need a permit, and why drainage decides it.

By Zakaria 3 min read Save to Pinterest — opens Pinterest in a new tab

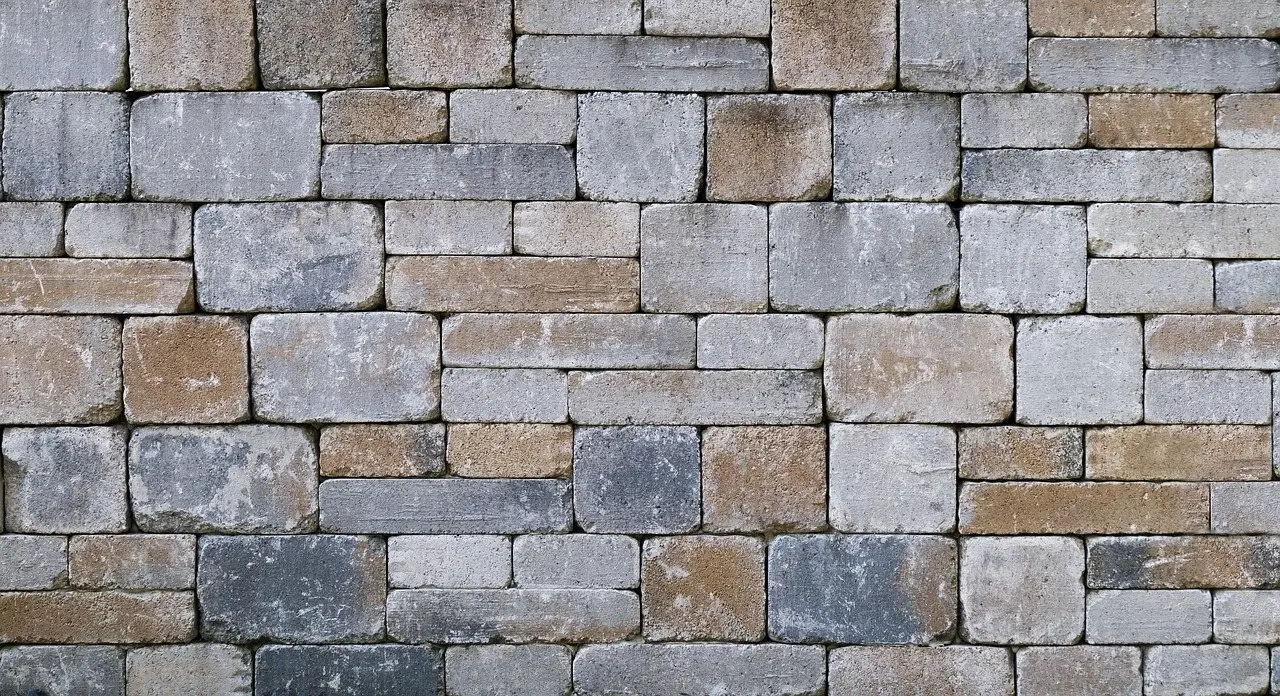

A wall of concrete blocks laid in staggered courses, joints offset between rows
Photo: anaterate, Pixabay Content License, via Pixabay
On this page

The block choice sets the price per square foot. The height sets everything else — the permit, the engineering, and whether the wall is standing in ten years.

What the options cost, relatively

Block types by cost and suitability
BlockRelative costInterlockGood to
Standard concrete masonry unitLowestNone — mass and setback only~2 ft
Plain segmental block, lip or pinLowPositive3–4 ft typical limit
Split-face decorative segmentalMediumPositiveAs above
Large concrete blockMediumMassHigher, needs plant
Natural stoneHighestDepends on buildVaries
Timber sleepersLow–mediumFixingsRots at soil contact
Gabion basketsLow–mediumMassGood, needs fill

Measure in square feet of wall face — length times height. That is how the material and the work both scale.

The cost people miss

The blocks are usually under half the bill on a DIY wall:

  • Base course stone, compacted
  • Free-draining aggregate behind the full height
  • Perforated pipe and fittings
  • Geotextile
  • Spoil removal from the excavation
  • Getting it all into the garden, which dominates if a machine cannot reach

Drainage, which is not optional

This is the difference between a wall and a future demolition job.

  1. Twelve inches of free-draining aggregate behind the blocks, full height
  2. Perforated pipe at the base, laid with fall to an outlet that actually daylights
  3. Geotextile between the aggregate and the retained soil, so silt does not migrate in and clog it
  4. Cap the top so surface water runs away rather than straight down the back of the wall

Saturated soil weighs far more than dry soil and pushes with hydrostatic pressure the wall was never designed for. Almost every leaning garden wall failed here rather than in the blocks.

Check the permit threshold before you buy anything

Most jurisdictions require an engineered design and a permit above three or four feet — measured from the bottom of the buried course, not from ground level in front.

The forces rise sharply with height and a failure is genuinely dangerous. Two two-foot walls with a planted bench between them are usually cheaper, often permit-exempt, and look better than one four-foot wall.

Building it

  1. Excavate the trench wider than the block, to below the frost line where that applies
  2. Compact six inches of crushed stone in two lifts
  3. Level the first course obsessively. Every course above copies it
  4. Bury that first course — one course, or about ten percent of wall height
  5. Backfill drainage aggregate as you go, not at the end
  6. Batter the wall back into the slope slightly rather than building plumb
  7. Stagger the joints so no vertical line runs through
  8. Cap the top course, with adhesive if the system uses it

Cheaper approaches worth considering

  • Terrace instead of building tall. Two short walls, a planted bench between
  • Gabion baskets filled with site stone or rubble, where the look suits
  • Regrade rather than retain, if the fall is small enough. Moving soil is cheaper than holding it
  • Buy blocks as a pallet lot rather than in bags or small quantities
  • Source the aggregate in bulk — the per-tonne difference against bagged is large

Where cheap walls fail

  • No drainage. The leading cause, by a wide margin
  • No buried first course, so the base slides forward
  • One thick lift of base stone, uncompacted through
  • Built plumb instead of battered back
  • Timber in direct soil contact with no liner
  • Built tall without checking the permit position, then rebuilt

Common questions

What is the cheapest retaining wall block?

Plain concrete segmental blocks with a lip or pin system are the cheapest purpose-made option, and standard concrete masonry units are cheaper still if you are willing to render or face them. Both are far less expensive per square foot of wall face than natural stone or split-face decorative blocks. The block is rarely the largest cost though — the base stone, drainage aggregate, and getting material into the garden usually add up to more.

How high can I build a retaining wall without an engineer?

Commonly three or four feet depending on jurisdiction, and it varies locally so check before buying. Above that threshold most places require an engineered design and a permit, because the forces involved rise sharply with height and a failure is dangerous. Two shorter terraced walls with a bench between them are usually cheaper than one tall wall and often stay under the threshold.

Do retaining wall blocks need drainage behind them?

Yes, and skipping it is the main reason walls lean. Saturated soil weighs far more than dry soil and exerts hydrostatic pressure the wall was never designed for. The standard build is twelve inches of free-draining aggregate behind the blocks, a perforated pipe at the base with fall to a real outlet, and geotextile between the aggregate and the retained soil so silt does not clog it.

How much does a block retaining wall cost?

DIY, you are commonly looking at the blocks themselves plus roughly the same again in base stone, drainage aggregate, pipe and geotextile. Installed, retaining walls frequently run thirty to seventy dollars per square foot of wall face. Measure in square feet of face — length times height — because that is how the work scales, and a wall twice as tall is far more than twice the job.

Do I need to bury the first course?

Yes. The usual rule is one course, or about ten percent of the wall height, below finished grade, set on compacted crushed stone. That buried course resists the wall sliding forward at the base, which is a failure mode independent of leaning. Levelling that first course properly is also what makes every course above it sit right, so it is worth more time than it seems to deserve.

Can I use ordinary concrete blocks for a retaining wall?

For low walls, with care. Standard concrete masonry units have no lip or pin to resist the soil pushing the courses forward, so they rely on mass, setback and sometimes mortar or rebar and fill. Below about two feet with proper drainage they can work and they are cheap. Above that, purpose-made segmental blocks with a positive interlock are safer and not much more expensive.
